Description:

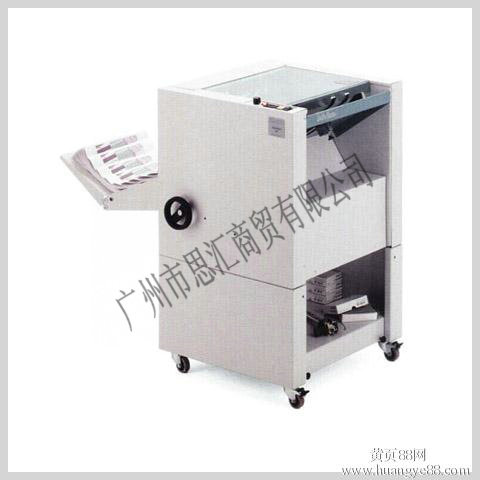

Production-type folding machine, suitable for digital work environment, offline job production booklet, in conjunction with digital printing presses built formation booklet production solutions, and balance between flexibility, practicality, economy and professional characteristics. FUNDY folding machine minimum paper 140x210mm, sheet 325x450mm, and digital printing paper size is basically the same, the saddle can be completely solved after printing the finished product, the production of flat products such as nails, Brads. FUNDY folding machine using a 45 ° feed angle, facilitates printing input connection line trimming knives, can increase productivity for twice times. FUNDY folding machine offline solutions supplies costs are generally wired in integration schemes cost 10%-20%
Form book: SF40: saddle, ring set,
SF40+: saddle set, ring set, flat, angular set
Patented design-set folded, guarantee accurate set at Staples on the spine
Stapled, folded once completed
From A6 A3 size to the smallest can do booklets
Professional nail head design (nail flap replacement)
Counters and nails show deficiency, avoid waste production
Exchange with ring nails without nail head
Easy to install, simple, maintenance-free
To save space, can be placed on the desktop, with optional bracket
With Collator, trimming the distribution set before folding in-line work
Technical parameters:
FUNDY SF40 / SF40+
Binding speed 1500 books per hour
Binding thickness 25
Suitable paper size 140x210mm-320x450mm
Machine dimensions w 520mm h 600mm d 880mm
Machine weight 60 kg
